LED driving light – LIGHT BAR 283x42mm 45W 10-32V R10, R149 Ref.30

LED driving light – light bar with front position, series eXite, has dimensions 283x42x58mm, nominal power 45W and operates at 10-32V. Work lamp consists of nine 5W LEDs with a total light intensity of 3375 Lumens and with reflector-facing LED design (RF-LED design). Driving light has refractive lens for better light beam forming and ECE approved front position light in white or amber.

Reflector facing LED design (RF-LED design) is advanced computer-designed, multi-surface reflector that concentrates and focuses beam pattern of the reflector-facing LEDs more precisely than forward facing LEDs. That allows for a true, controlled beam pattern, along with more light output per watt compared to forward facing LED design and as a result you get greater visibility in all weather conditions.

– dimensions: 283x42x58mm
– functions: driving light, front position light (white / amber)
– power: 45W (9x 5W LED)
– voltage: 10-32V
– lumen: 3780Lm (effective 3375Lm) / 1Lux@325m
– beam: driving beam (Ref. 30)
– ingress protection (IP rating): IP67, IP69K, vent filter
– approval: ECE R149, R10

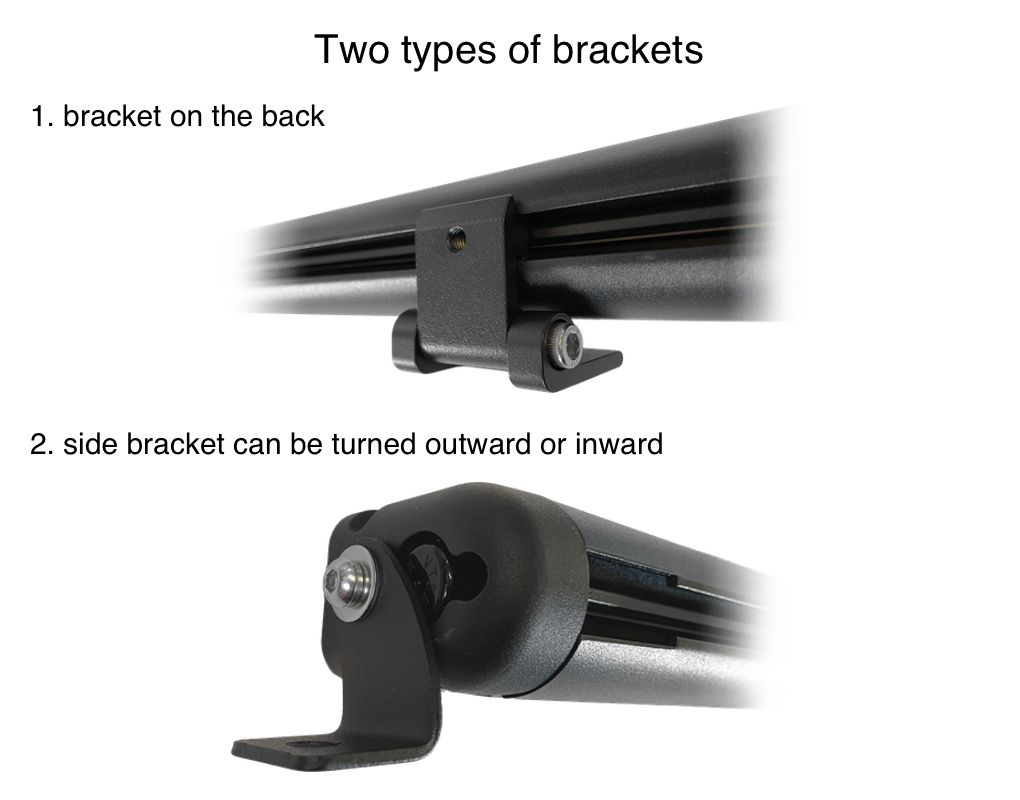

– installation: two types of brackets for different mounting methods
– connection: Deutsch connector (included both parts of connector – see photo)

Wiring diagram:
– black: negative pole “-”
– red: positive pole “+”
– white: white position
– yellow: amber position

For ECE compliance, two driving lights must be installed on the vehicle.
